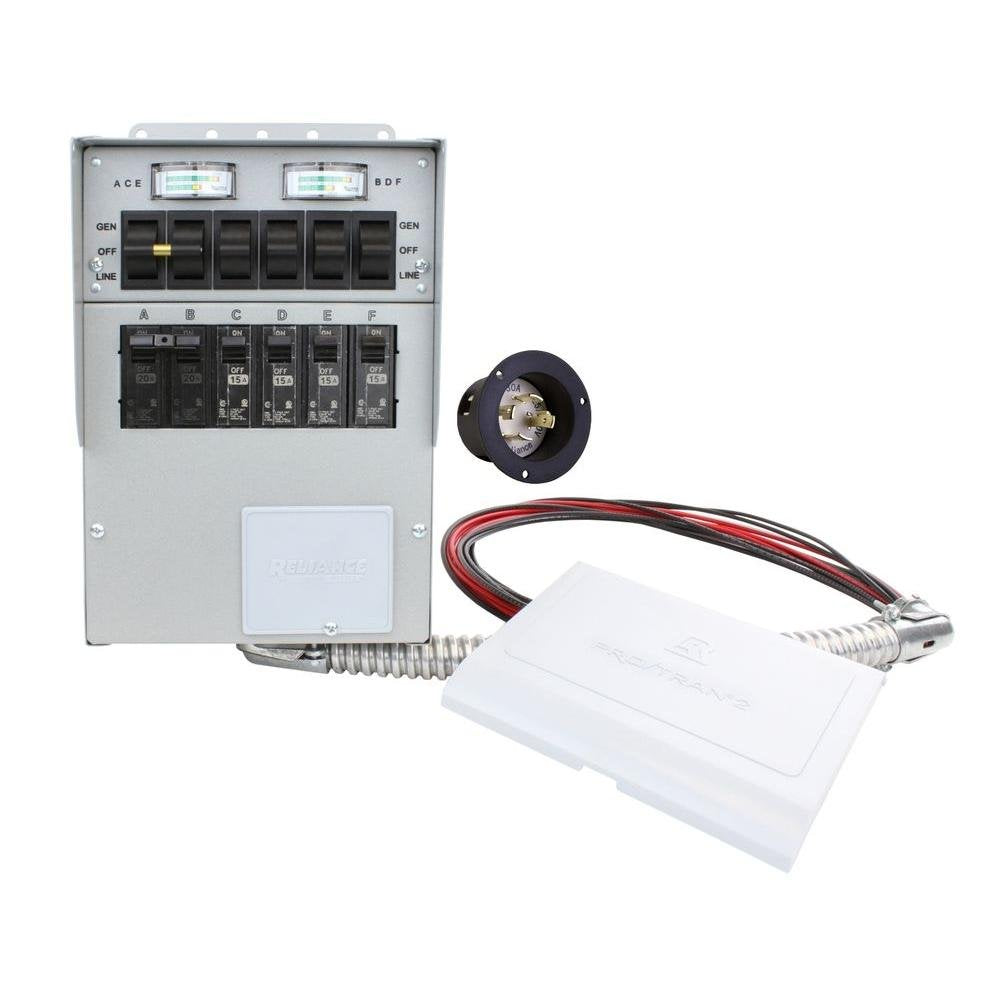

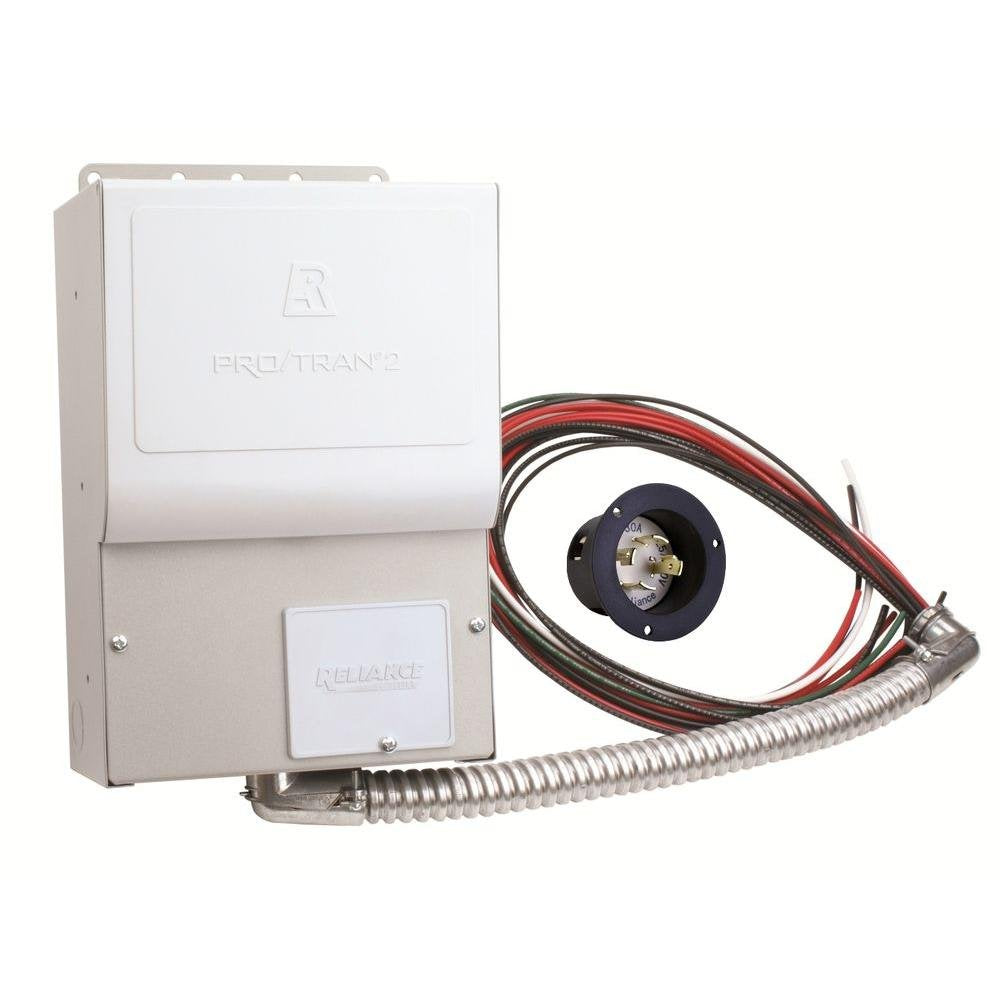

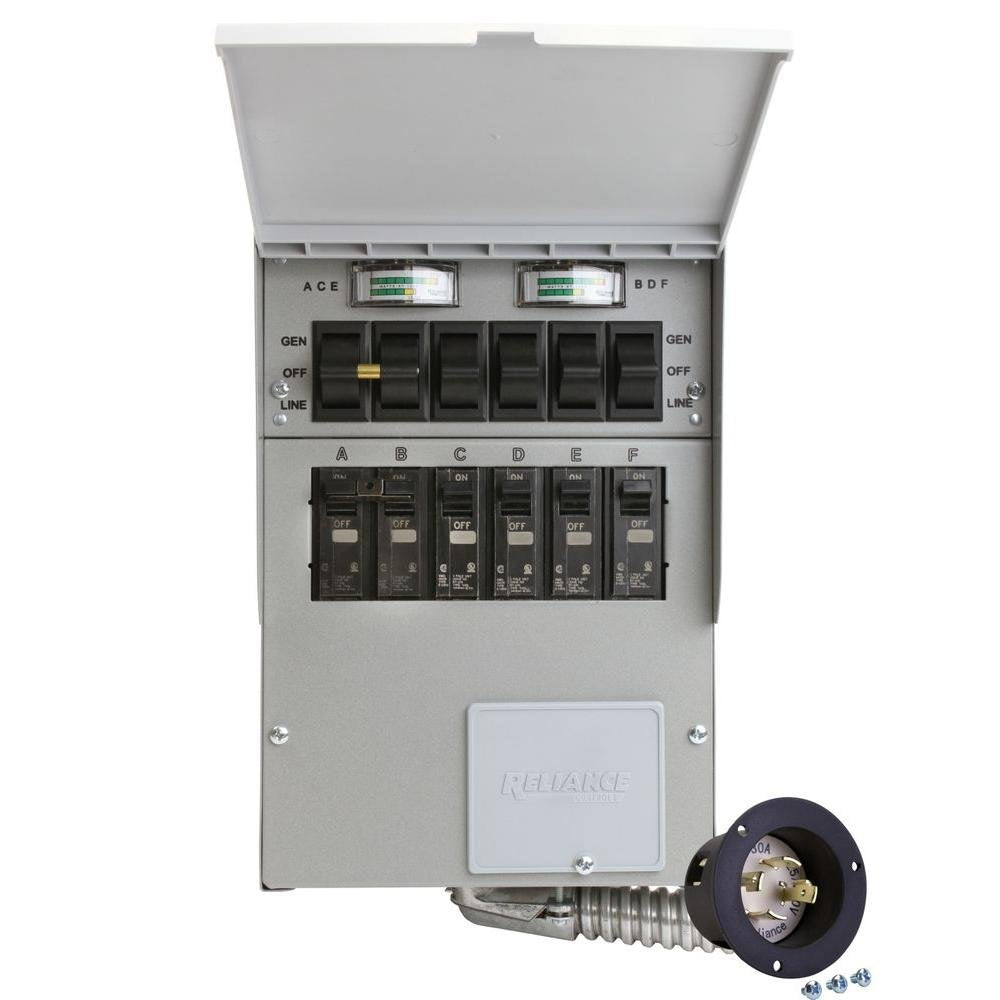

306A Pro/Tran2 30-Amp 6-Circuit 2 Manual Transfer Switch with Optional Power Inlet

306A Features: -Pro/Tran 2 series is UL listed to UL standard 1008 and is suitable for use in accordance with article 702 of the national electrical code ANSI/NFPA 70. -Made in the USA. Country of Manufacture: -United States. Product Type: -Transfer switch cover. Hardware Finish: -Painted steel cabinet. Finish: -Steel. Dimensions: Overall Height - Top to Bottom: -11.25'. Overall Width - Side to Side: -7.75'. Overall Depth - Front to Back: -4.5'. Overall Product Weight: -15 lbs.

Additional details

• Color : Gray

Features & Specs

• Actuator Type : Hinge Lever
• Circuit Type : 6-way
• Compatible Devices : 30A Generators
• Connectivity Protocol : X-10
• Connector Type : Twist-lock
• Contact Type : Normally Open
• Control Method : Touch
• Control Type : Manual
• Current Rating : 30 Amps
• Mounting Type : Panel Mount
• Number of Positions : 3
• Operating Voltage : 240 Volts (AC)
• Operation Mode : ON-OFF-ON
• Switch Type : Push Button
• Terminal : Screw
• Wattage : 7.5 KW

Item details

• ASIN : B00Y1F71NY
• Brand Name : Reliance Controls
• Item Weight : 12 Pounds
• Manufacturer : Reliance Controls
• Model : 306A
• Part Number : 306A
• UPC : 815181012267

Materials & Care

• Contact Material : Copper
• Material Type : Steel

Measurements

• Item Dimensions : 7.75 x 4.5 x 11.25 inches
• Number of Items : 1
• Unit Count : 1 Count

User guide

• International Protection Rating : IP54
• Specification Met : UL
