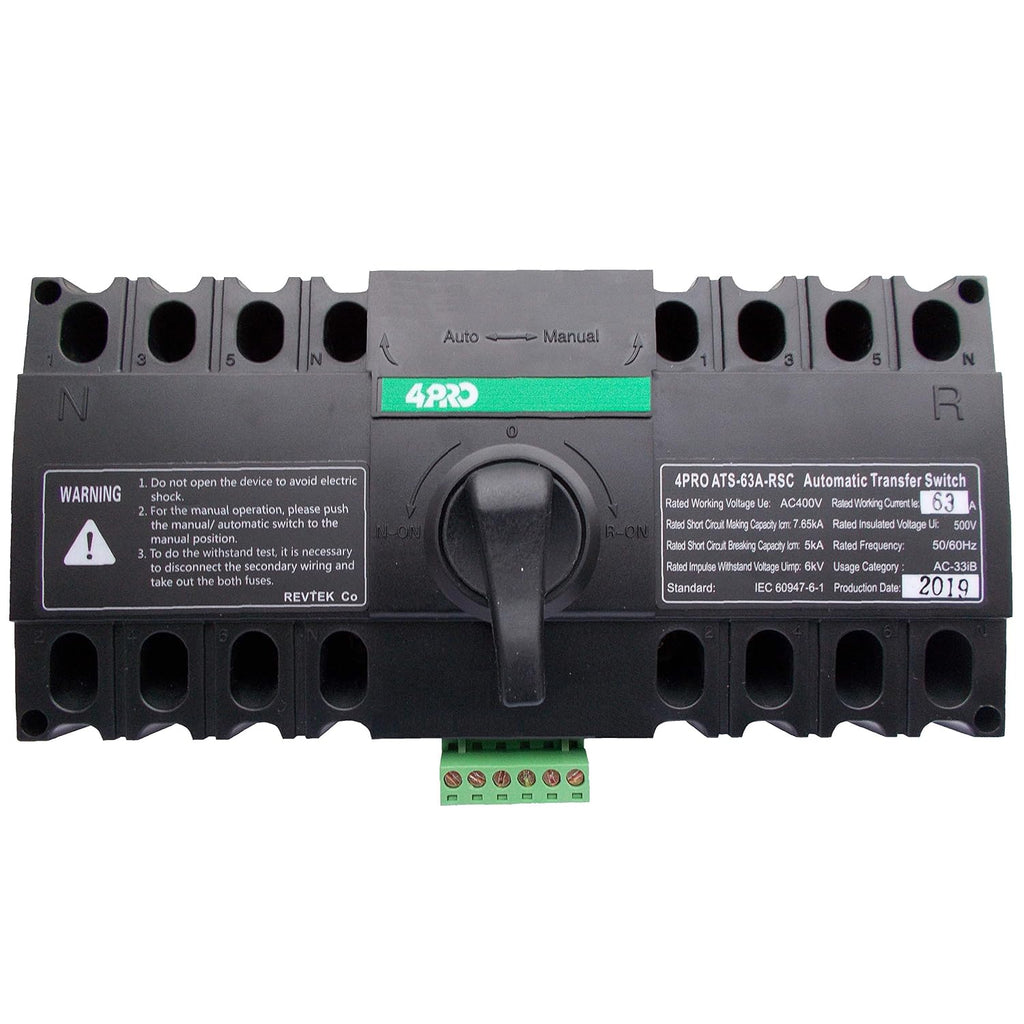

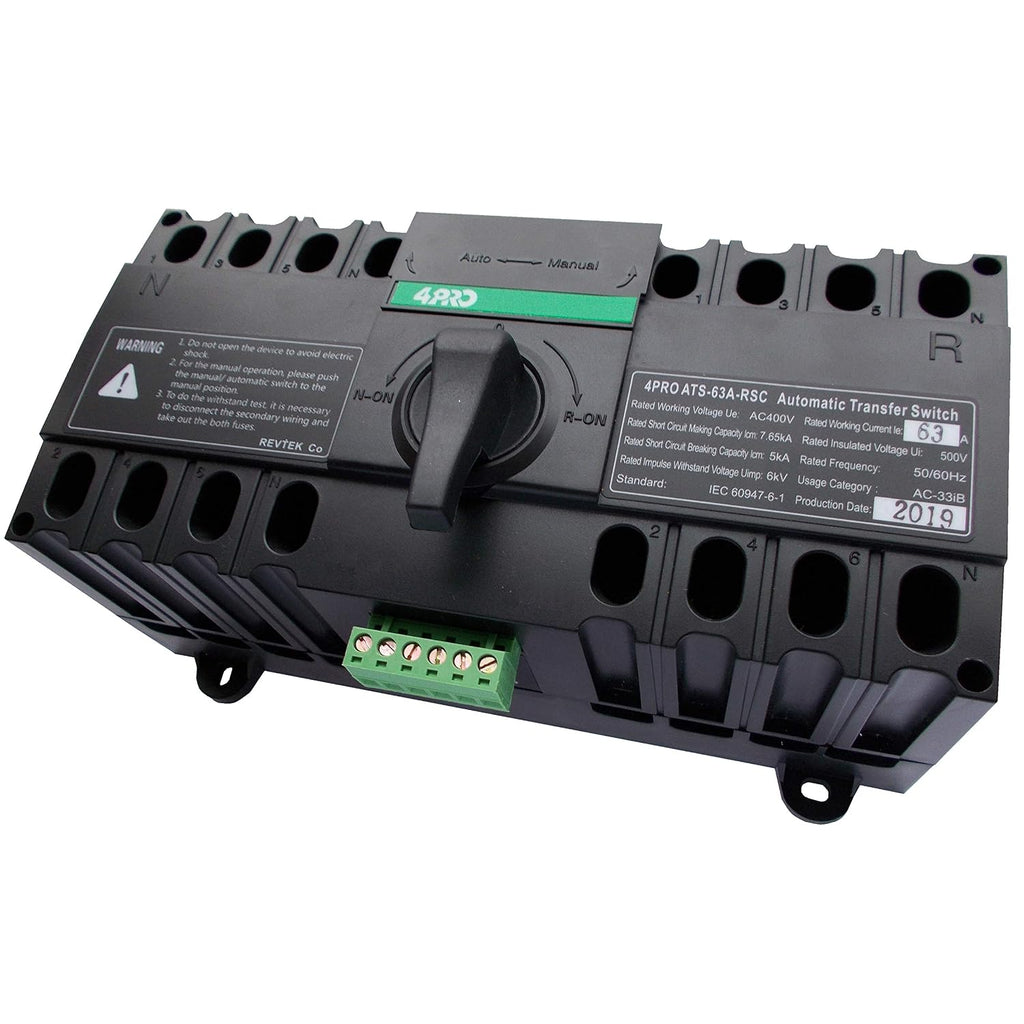

4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 Phase, 4 pol, 3 pos,

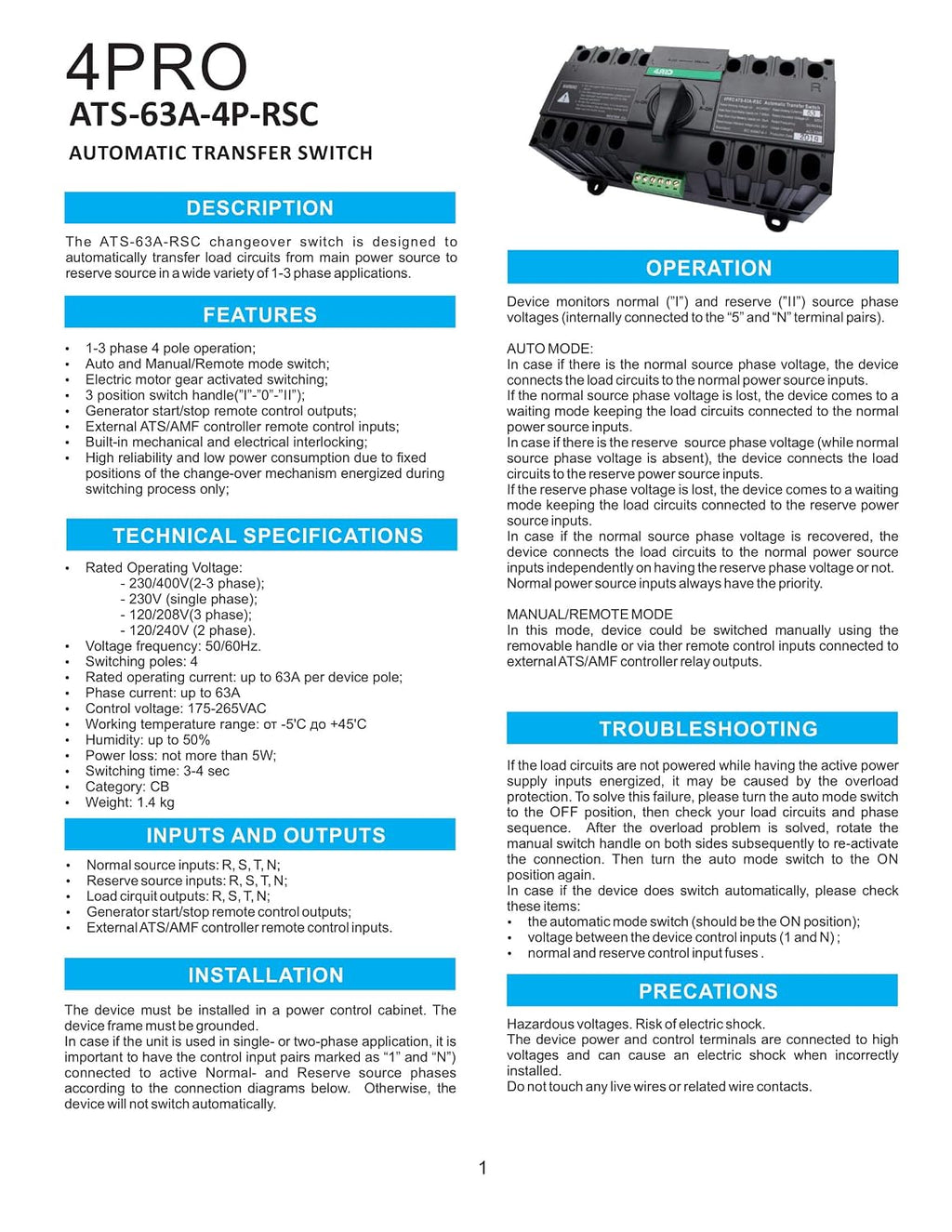

DESCRIPTION

The ATS-63A-RSC changeover switch is designed to automatically transfer load circuits from main power source to reserve source in a wide variety of 1-3 phase applications.

FEATURES

- 1-3 phase 4 pole operation;

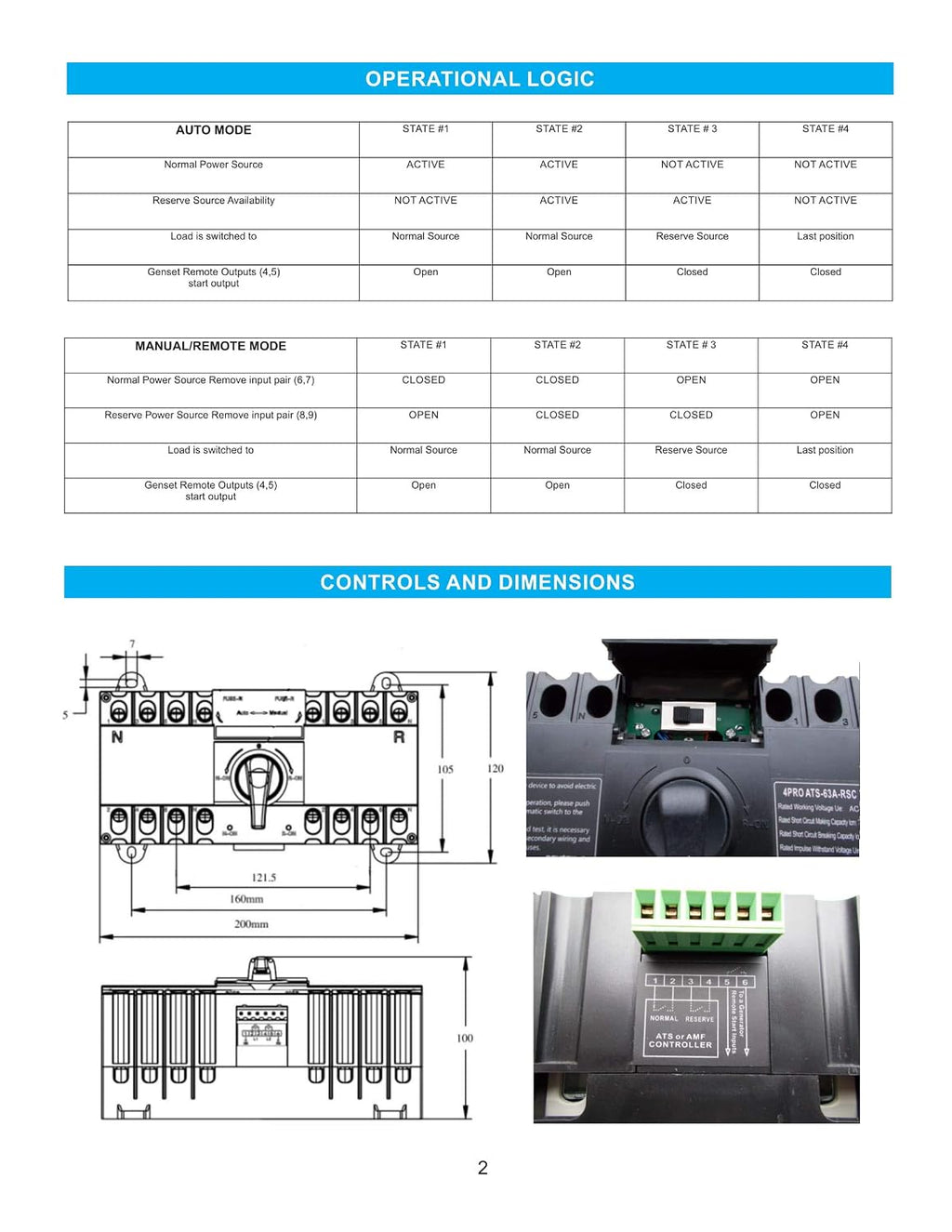

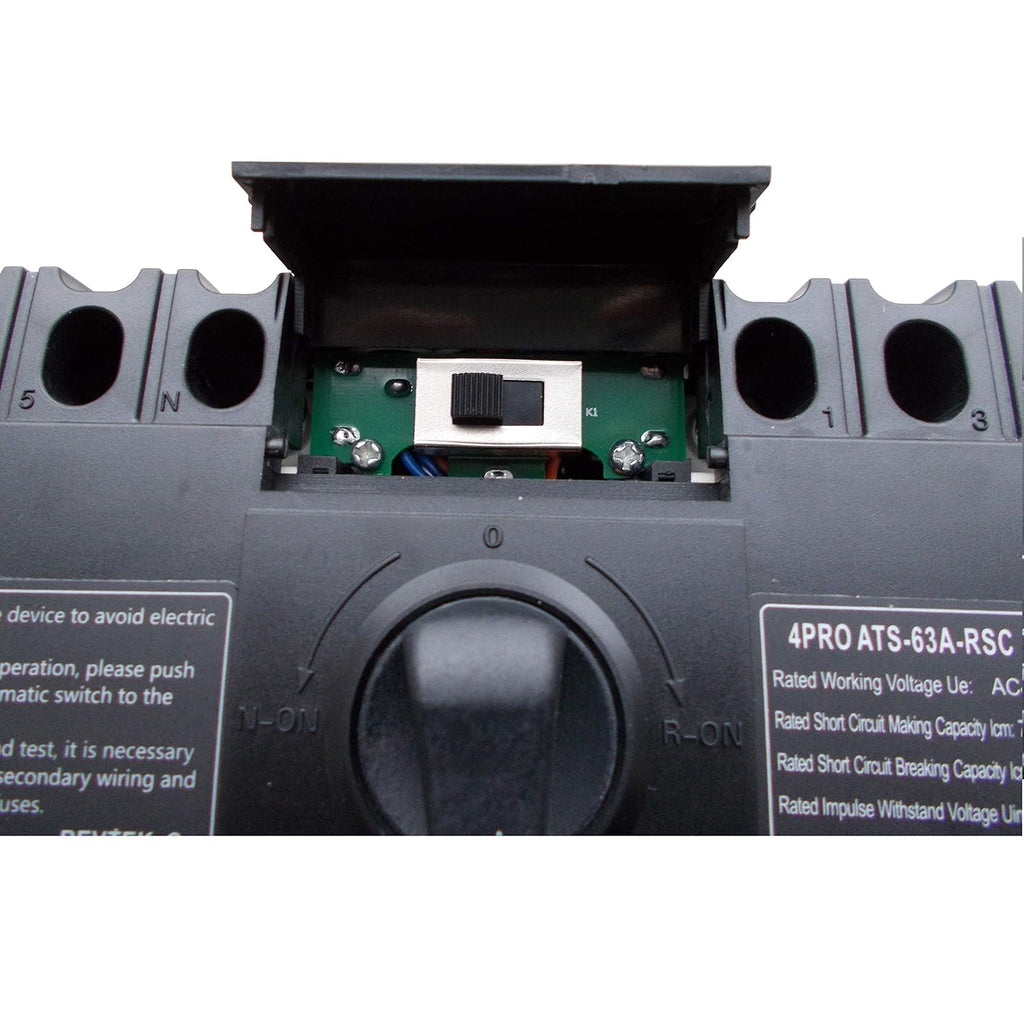

- Auto and Manual/Remote mode switch;
- Electric motor gear activated switching;
- 3 position switch handle('I'-'0'-'II');
- Generator start/stop remote control outputs;
- External ATS/AMF controller remote control inputs;
- Built-in mechanical and electrical interlocking;
- High reliability and low power consumption due to fixed positions of the change-over mechanism energized during switching process only;

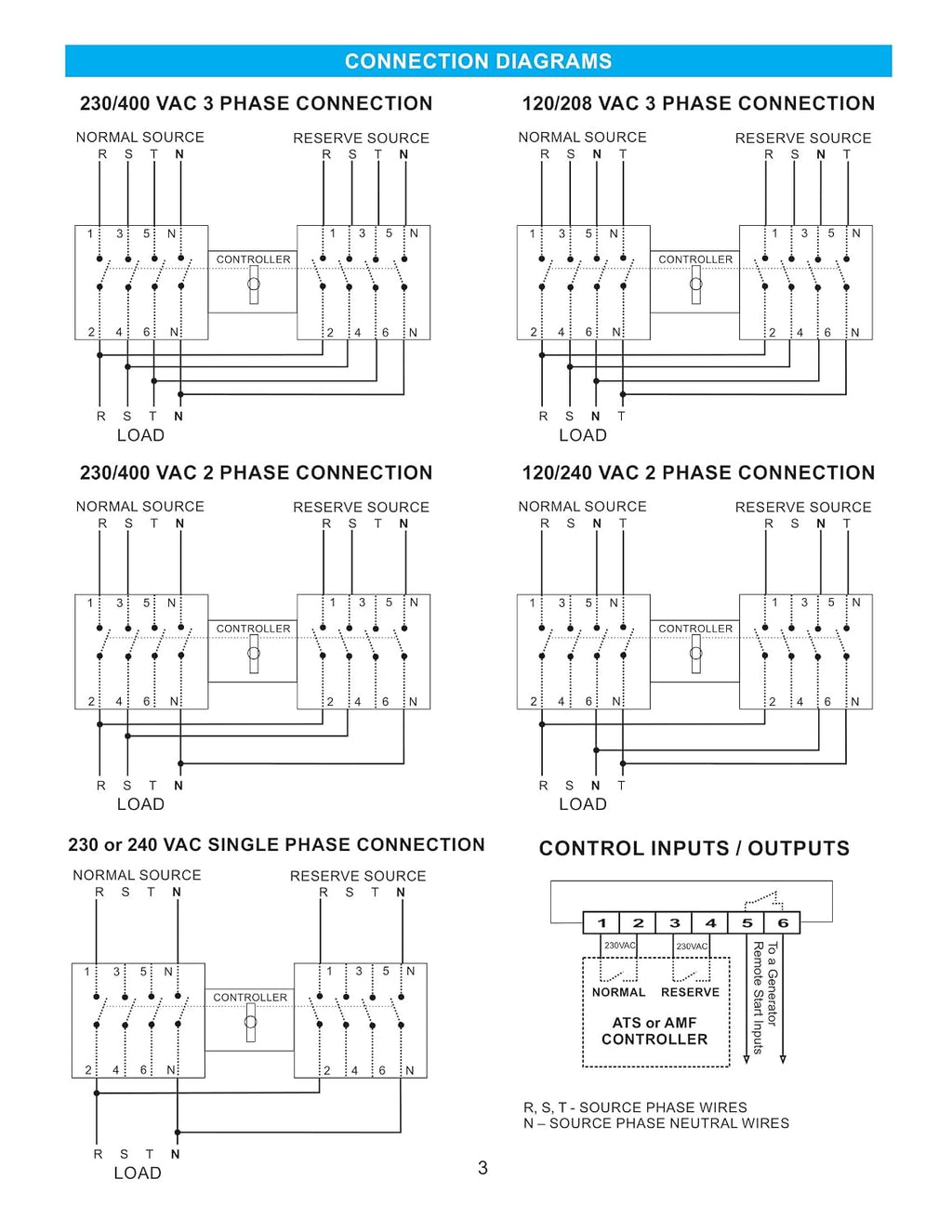

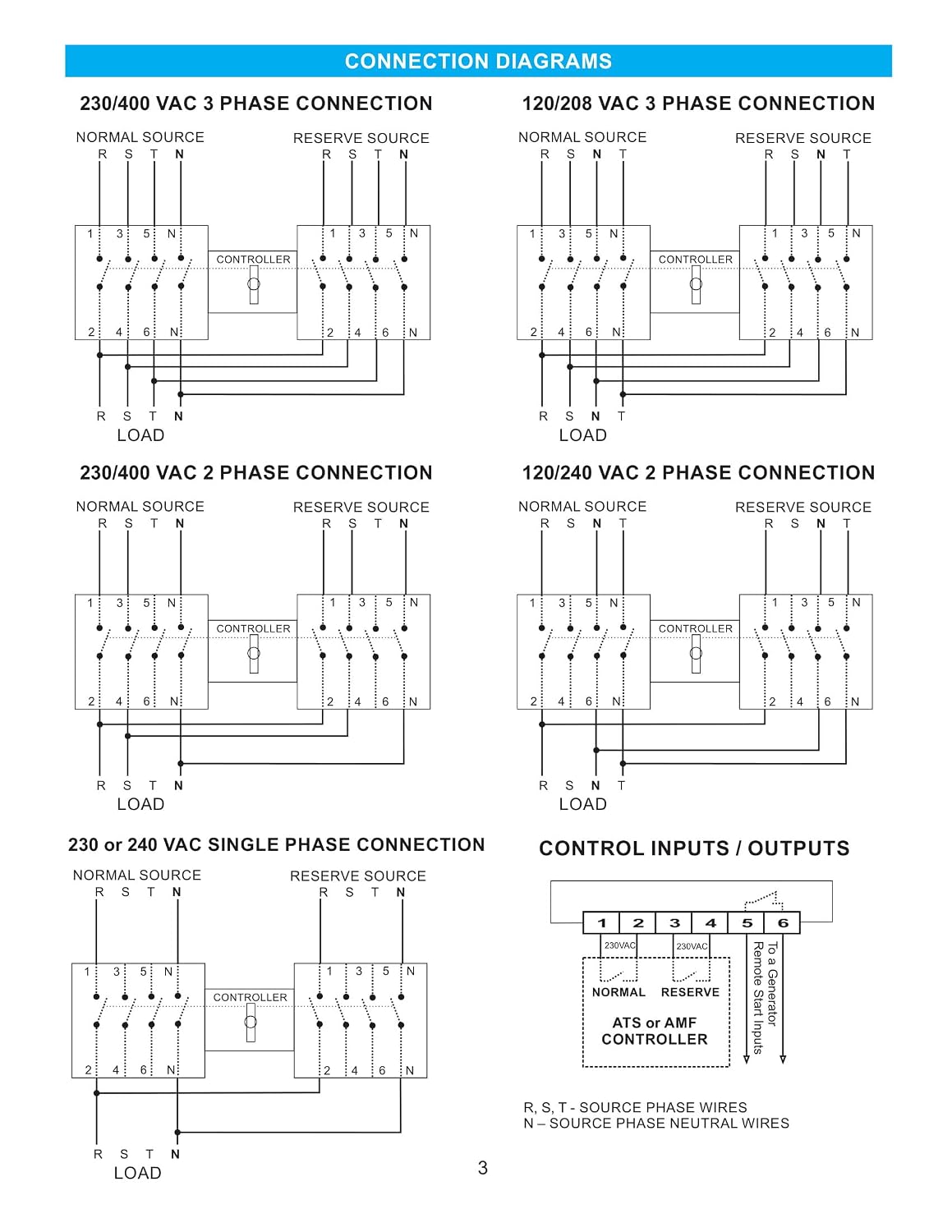

INPUTS AND OUTPUTS

- Normal source inputs: R, S, T, N;
- Reserve source inputs: R, S, T, N;
- Load cirquit outputs: R, S, T, N;
- Generator start/stop remote control outputs;
- External ATS/AMF controller remote control inputs.

TECHNICAL SPECIFICATIONS
- Rated Operating Voltage:
- 230/400V(2-3 phase);
- 230V (single phase);
- 120/208V(3 phase);
- 120/240V (2 phase).
- Voltage frequency: 50/60Hz.
- Switching poles: 4
- Rated operating current: up to 63А per device pole;
- Phase current: up to 63А
- Control voltage: 175-265VAC
- Working temperature range: от -5'C до +45'C
- Humidity: up to 50%
- Power loss: not more than 5W;
- Switching time: 3-4 sec
- Category: CB
- Weight: 1.4 kg

Features & Specs

• Actuator Type : Rotary
• Circuit Type : multi-way
• Connectivity Protocol : X-10
• Connector Type : Screw Terminals
• Contact Type : Normally Open
• Control Method : Remote
• Current Rating : 63 Amps
• Mounting Type : Rack Mount
• Number of Positions : 3
• Operating Voltage : 240 Volts
• Operation Mode : Automatic
• Switch Type : Temperature Switch
• Terminal : Screw
• Wattage : 5 watts

Item details

• ASIN : B085HWRV2Y
• Brand Name : 4PRO
• Item Weight : 1.5 Kilograms
• Manufacturer : 4PRO
• Part Number : ATS-63A-4P-RSC
• UPC : 636601330873

Materials & Care

• Contact Material : Copper
• Material Type : Copper

Measurements

• Item Dimensions : 7.87 x 4.13 x 3.94 inches
• Unit Count : 1.0 Count
